Semi Automatic Volumetric Filling Machines

Name: Lancing Ltd
Address: Unit 5A Jefferson Way, Thame, Oxfordshire, OX9 3SZ, GB
Telephone: 01494 623015

The semi-automatic system offers separate machines each requiring manual product placement but still affording a very significant improvement in production rates compared to manual filling, capping and labelling. Lancing semi-automatic filling machines are versatile, inexpensive and easy to operate. Manufactured from 304 stainless steel, the machines offer easy adjustment between different filling volumes allowing quick and easy product changeover. Most machines include pneumatic shutoff valves to ensure zero leakage after filling. With single head, twin head and hopper options the Lancing range combines excellent accuracy with high speed operation – filling rates of up to 2400 bottles per hour* can be achieved, with an accuracy of 1%.

Ideal For
Head Configurations
Available Filling Capacity
Estimated Filling Rate

Call 01494 623015 View specifications

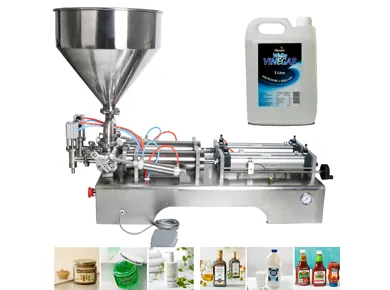

Semi Automatic Volumetric Filling Machines product image

Key features

Built for practical production use.

Ideal For

Liquids, pastes, oils, chemicals, sauces, etc. Free flowing or viscous, with or without particulates or fibres.

Head Configurations

2, 4, 6 or 8 head

Available Filling Capacity

5 – 100ml, 20-500ml, 50-1000ml, 500-5000ml

Estimated Filling Rate

2Hd 2400BPH, 4Hd 3000BPH, 6Hd 4200BPH, 8Hd<4800BPH

Features

HMI Screen Multiple Language Options Product Tank Diving Nozzle Drip tray (pneumatically actuated) Control System for Diaphragm pump (feed to tank) Configurable Production Limit (set number of bottles required before stop filling) Product Count Variable Speed Conveyor Multi-shot option Manual Over-ride and Operation (for set-up)

Optional extras

Manifold for direct connection to vessel Extended Nozzle End Shut-off Extended Nozzle Extended Dive Diaphragm Pump System (auto replenish tank)

Technical information

Specifications.

Performance varies by product, container and setup. Ask for a timed trial or specification review.

Ideal For	Liquids, pastes, oils, chemicals, sauces, etc. Free flowing or viscous, with or without particulates or fibres.
Head Configurations	2, 4, 6 or 8 head
Available Filling Capacity	5 – 100ml, 20-500ml, 50-1000ml, 500-5000ml
Estimated Filling Rate	2Hd 2400BPH, 4Hd 3000BPH, 6Hd 4200BPH, 8Hd<4800BPH
Features	HMI Screen Multiple Language Options Product Tank Diving Nozzle Drip tray (pneumatically actuated) Control System for Diaphragm pump (feed to tank) Configurable Production Limit (set number of bottles required before stop filling) Product Count Variable Speed Conveyor Multi-shot option Manual Over-ride and Operation (for set-up)
Optional extras	Manifold for direct connection to vessel Extended Nozzle End Shut-off Extended Nozzle Extended Dive Diaphragm Pump System (auto replenish tank)

Product notes

Volumetric Filling Machine

The machines are built around a substantial stainless steel chassis which incorporates an air regulator and a quick release air coupling. The filling nozzle is detachable allowing filling to be incorporated into existing production lines. Machines can be supplied with an electrical control system (240v 1ph) or for fully pneumatic operation (ideal for wet environments or for use with hazardous products). 2400 bottle per hour based in twin head filler. Rates may vary dependant on fill volume System Operation Volumetric machines are generally inexpensive, easy to operate and offer an upgrade path should your requirements expand. They are suitable for everything from low viscosity liquids such as fuel or water through to heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils, lubricants and Jam.
