Semi Automatic Peristaltic Filling Machine

Name: Lancing Ltd
Address: Unit 5A Jefferson Way, Thame, Oxfordshire, OX9 3SZ, GB
Telephone: 01494 623015

Double‑head semi‑automatic peristaltic filler for large bottles and jugs. High flow (≈12 L/min × 2) with tubing‑only contact makes quick, hygienic changeovers.

Two peristaltic pumps
≈12 L/min × 2
Clean product path
Foot pedal + auto modes

Call 01494 623015 View specifications

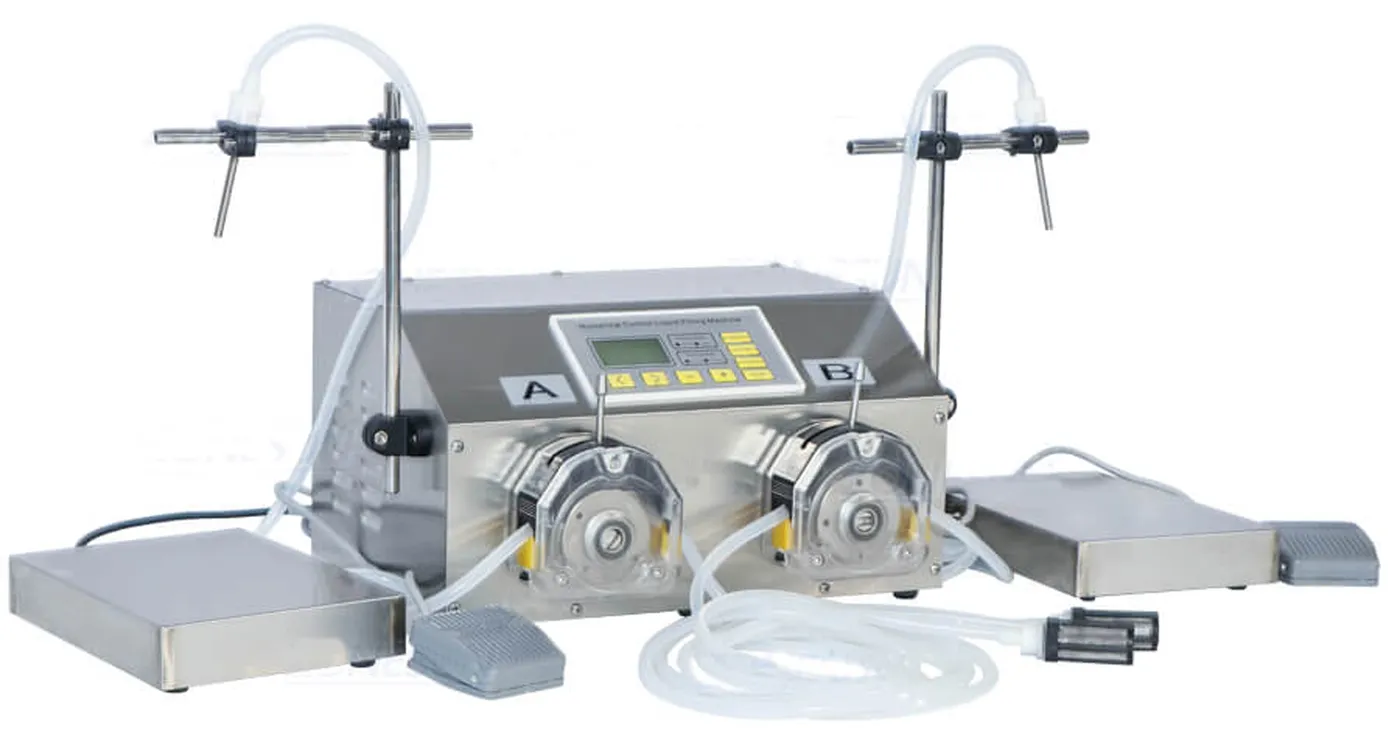

Semi Automatic Peristaltic Filling Machine product image

Key features

Built for practical production use.

Two peristaltic pumps

Independent channels for parallel fills.

≈12 L/min × 2

High flow based on water; set delay and counts.

Clean product path

Liquid only contacts tubing—easy to replace.

Foot pedal + auto modes

Flexible triggering for operators.

OD 6 mm nozzles

Suitable for many bottle necks.

Compact footprint

≈620×430×250 mm; ~20 kg net weight.

Technical information

Specifications.

Performance varies by product, container and setup. Ask for a timed trial or specification review.

Model	LUYTPPR2
Heads	2 peristaltic channels
Flow rate	≈12 L/min × 2 (water)
Delay range	≈0.01–999.9 s
Counting range	≈1–59999 times
Nozzle	OD ≈6 mm
Voltage	110/220 V, 50–60 Hz
Power	≈300 W
Machine size	≈620 × 430 × 250 mm
Packing size	≈470 × 710 × 410 mm
Net / Gross weight	≈20 / 38 kg
Materials	Tubing per product compatibility
