Semi-automatic filling machines

Semi Automatic Isobaric Filling Machine

Compact 4‑head counter‑pressure can filler with mixing module. Designed for soda, sparkling drinks and RTD cocktails in 330–500 ml cans.

  • 4 filling heads
  • 240–400 CPH
  • Integrated mixer
  • CO₂ & air controls
Call 01494 623015View specifications

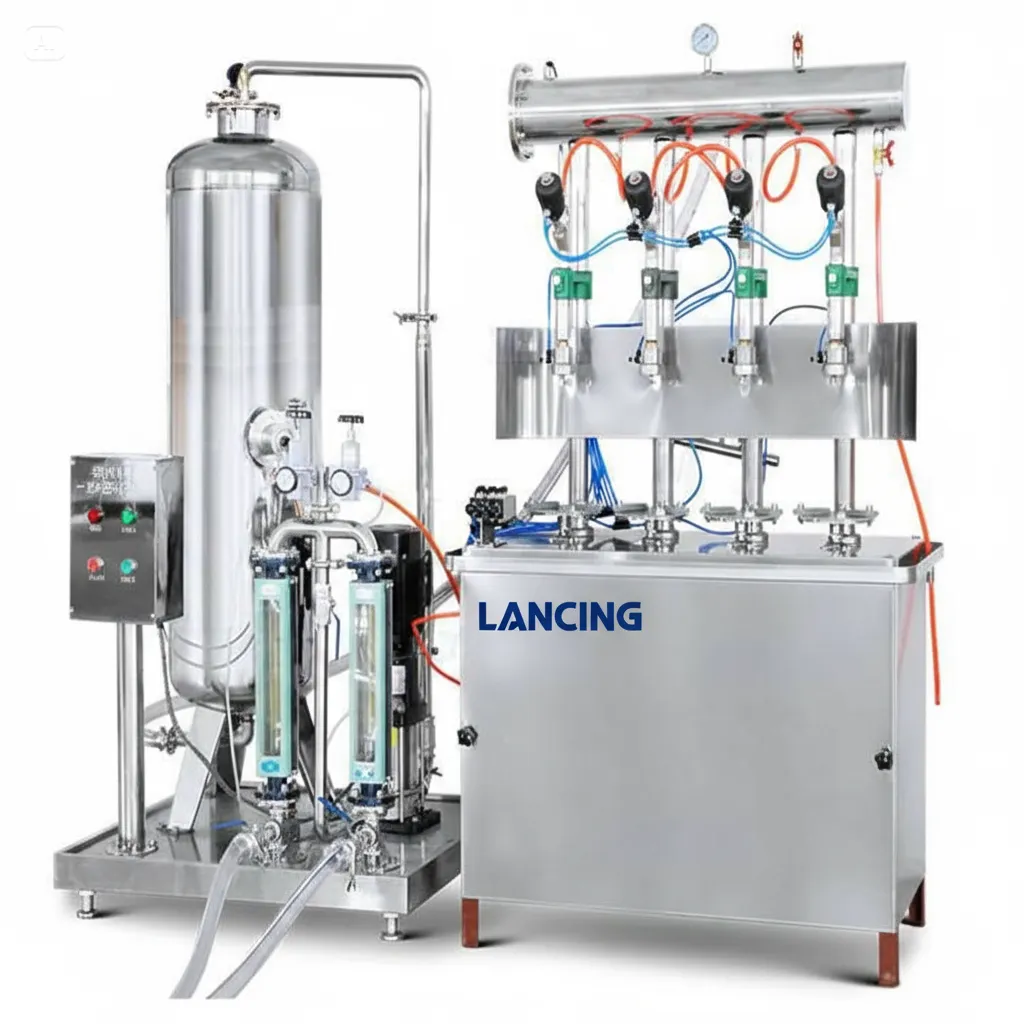

Semi Automatic Isobaric Filling Machine product image

Key features

Built for practical production use.

4 filling heads

Sealed heads maintain counter‑pressure during fill.

240–400 CPH

Throughput varies by beverage and can size.

Integrated mixer

Chills and carbonates for consistent CO₂ content.

CO₂ & air controls

Typical CO₂ 0.2–0.3 MPa; air 0.5–0.7 MPa.

Compact enclosure

Small footprint with custom can molds.

Customizable

Adapts for 330/500 ml and other sizes.

Technical information

Specifications.

Performance varies by product, container and setup. Ask for a timed trial or specification review.

ModelLUCF4A
Nozzles4
Product temp≈1–4 ℃
Filling pressure≈0.2–0.3 MPa
Capacity≈240–400 cans/hour
Air supply≈0.5–0.7 MPa
Capacity≈1.5–2 T/h
Syrup:water≈1:2 to 1:8
Outlet temp< 6 ℃
Outlet pressure≈0.3–0.5 MPa
CO₂ purity> 99%
Package size/weight≈910×1000×1880 mm; ≈200 kg

Applications

Typical uses.

Beverages

Soda, seltzer, sparkling wine cocktails (in cans).

RTD & craft

Pilot runs and small‑to‑mid scale production.

Labs

Product development in pressurised cans.

What is included

Specification, machine supply and support.

  • 4‑head can filler with molds
  • Mixing/carbonation unit
  • Controls & gauges for CO₂ and air
  • User manual
