2 or 4 heads
Scale your throughput without changing platforms.
Compact filling machines

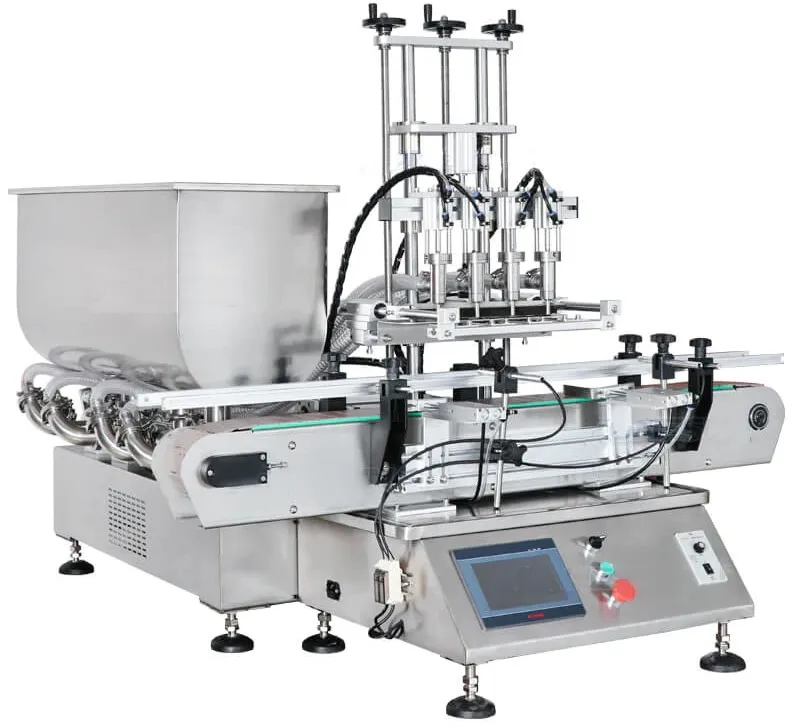

Compact Automatic Volumetric Filling Machine
Tabletop 2–4 head piston filler for soaps, shampoos and viscous liquids. Accurate volumetric dosing with ≤±1% typical accuracy.
- 2 or 4 heads
- Viscous‑friendly
- 10–30 bottles/min
- Wide volume ranges
Key features
Built for practical production use.
Viscous‑friendly
Piston pump handles lotions, shampoos and detergents.
10–30 bottles/min
Depends on dose and bottle size.
Wide volume ranges
5–100 ml up to 1000–5000 ml options.
Touchscreen HMI
Easy setup; language customizable.
Compact footprint
≈1270×1030×1200 mm; ~112 kg.
Technical information
Specifications.
Performance varies by product, container and setup. Ask for a timed trial or specification review.
| Model | LUDTHSP2 |
|---|---|
| Pump type | Piston |
| Heads | 2 (customizable to 4) |
| Volume options | 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml |
| Speed | ≈10–30 bottles/min |
| Accuracy | ≤ ±1% |
| Voltage | 110/220 V, 50–60 Hz |
| Power | ≈400 W |
| Air pressure | 0.4–0.6 MPa |
| Nozzle diameter | OD 10 mm (others optional) |
| Machine size | ≈1270 × 1030 × 1200 mm |
| Machine weight | ≈112 kg |
Applications
Typical uses.
Personal care
Liquid soap, lotion, shampoo, conditioner.
Household
Car shampoo and detergents.
Food (if suitable)
Low‑particulate sauces/oils.
What is included
Specification, machine supply and support.
- Piston filler base with chain conveyor
- Touchscreen HMI
- Two filling heads (expandable)
- Operation manual
